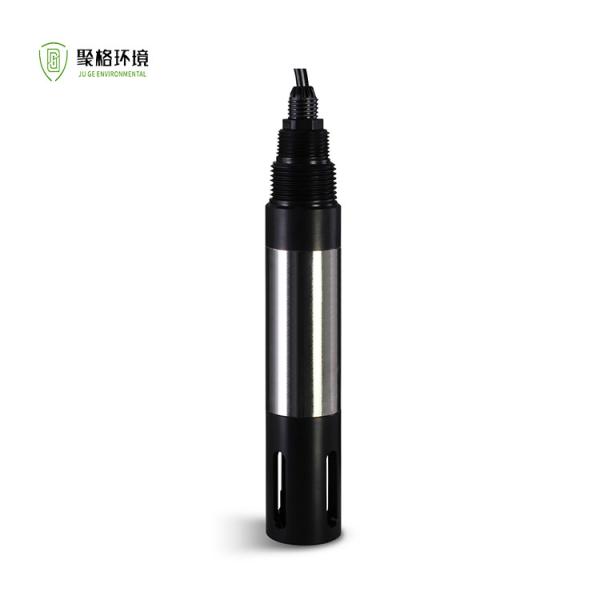

Industry Wastewater Polarography Dissolved Oxygen Sensor
>>Overview
The sensor features a robust structure suitable for diverse environments; Constructed with chemically resistant polymer material; Metal membrane effectively prevents fouling and ensures durability;Strong anti-interference capability and high stability; Exceptionally short polarization time and rapid response time.
Applications: Industrial or municipal wastewater treatment, aquaculture, and surface water monitoring.
>>Feature
- Utilizes the polarographic method with a stainless steel mesh membrane (film-covered design) and an external temperature sensor to accelerate response time and stabilize signals.
- Electrode housing is constructed from POM (polyoxymethylene) and 316 stainless steel, capable of withstanding temperatures from 0 to 50°C.
- Pure copper leads enable direct remote transmission, providing more accurate and stable signals compared to brass (copper-zinc alloy) leads.
>>Technical Parameter
Measurement Method: Polarography
Housing Material: POM + Stainless Steel
Waterproof Rating: IP68
Measurement Range: 0-20 mg/L
Accuracy: ±1% F.S.
Pressure Range: ≤0.3 MPa
Temperature Compensation: NTC10K/NTC2.252K/PT100/PT1000
Temperature Range: 0-50°C
Calibration: Deoxygenated Water Calibration, Air Calibration
Connection: 4-Core Cable
Cable Length: Standard 10 meters (extendable)
Installation Thread: Upper NPT 3/4'', 1''
Application: General use, rivers, lakes, drinking water, environmental monitoring, etc.
